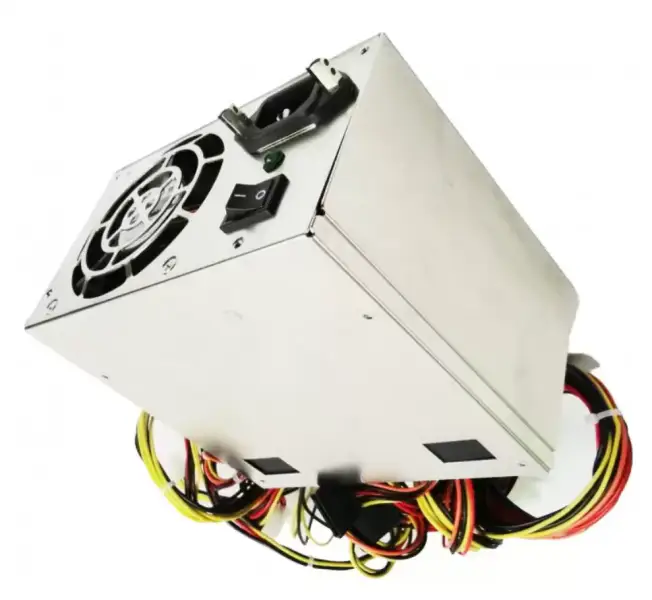

Zippy HG2-5600V Power Supply

Name: Zippy HG2-5600V Power Supply
SKU: EMP0077563
Price: 340 USD
Availability: InStock

stoklamak:

SKU:{{ product.sku }}

Model: {{ product.model }}

ağırlık: {{ product.weight }} kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

miktar:

Ürün detayları

Resimler

AC INPUT SPECIFICATION

DC INPUT SPECIFICATION

OUTPUT VOLTAGE	OUTPUT CURRENT		REGULATION		OUTPUT
	MIN.(A)	MAX.(A)	LOAD	LINE	RIPPLE & NOISE MAX.[P-P]
+5V	0.5	25	± 5%	± 1%	50mV
+12V	2	45	± 5%	± 1%	120mV
-12V	0	0.8	± 5%	± 1%	150mV
+3.3V	0.5	25	± 5%	± 1%	50mV
+5VSB	0.1	3.5	± 5%	± 1%	50mV

Remarks:
* TOTAL POWER: 600W(MAX)

TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃, STORAGE -20℃ ~ 80℃
HOLD UP TIME: 16ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
EFFICIENCY: 87% TYPICAL AT 115V FULL LOAD
POWER GOOD SIGNAL: ON DELAY 100ms TO 500ms, OFF DELAY 1ms
OVER POWER PROTECTOIN
OVER VOLTAGE PROTECTOIN
SHORT CIRCUIT PROTECTION
OVER CURRENT PROTECTION
COOLING: ONE 80mm DC FAN
LEAKAGE CURRENT: 3.5mA MAX. AT NOMINAL VOLTAGE VAC
ACTIVE POWER FACTOR CORRECTION MEET IEC-1000-3-2 CLASS D
EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
SAFETY: TO MEET UL, CUL, TUV, CCC
ErP READY
*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
